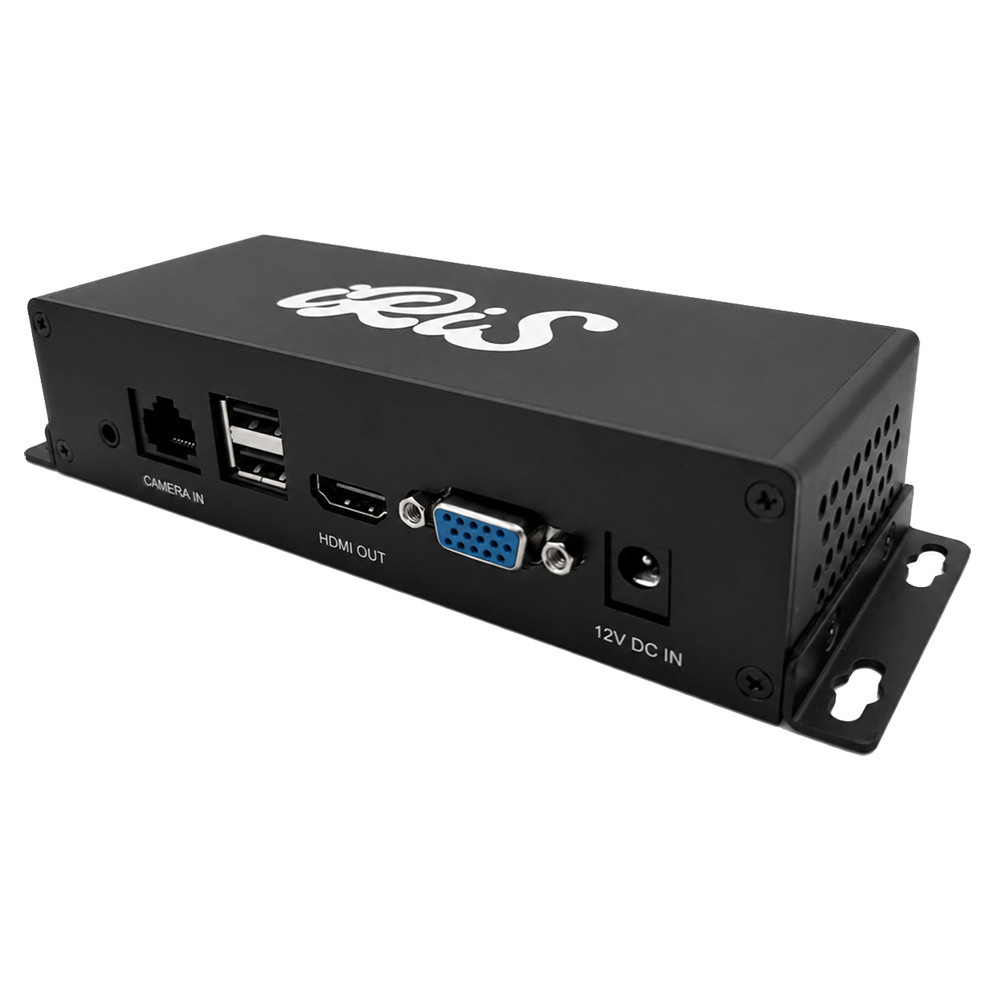

Iris Single Channel IP to HDMI Re-Coder [IP2HDMI-01]

Product Description

Single Channel IP to HDMI Re-Coder

The IP2HDMI-01 module processes video and audio streams from IP cameras and converts them to an HDMI format output.

Supporting up to 4K resolution, the IP2HDMI is the perfect tool for displaying Ultra High Definition IP cameras, such as the IRIS-PHOTON range on a chart plotter that supports 4K video inputs, such as Garmin’s 9000 series MFD’s, or displaying the cameras on a UHD TV.

With a secondary VGA output for legacy systems the device simply needs to be configured onto your camera network and then the IP address of your camera set.

Small, lightweight and lowpower, with surface mounting ears, the device can easily be installed behind a TV or chart plotter with very little power budget required.

The device is ONVIF Profile S compliant and supports all leading IP camera protocols.

Features:

• Converts IP Camera Stream to HDMI (and VGA)
• Perfect for showing IP Cameras on TV and Chart Plotters
• Supports Up to 4K Ultra Hi-Def Video
• Supports all major IP Camera Formats and Compression
• Small, Compact and Low Cost
• Easy Installation and Low Power Consumption
• Supports ONVIF Profile S
• Ideal for On Board and In Vehicle Camera Systems

Specifications:

• Weight/Dimensions - .5lbs / 6.7" x 2.4" x 1.4"
• Material - Aluminum, Hard Anodized
• Video Output Formats - 1 x HDMI port / 1 x VGA port (Simultaneous output)
• Camera Input - 1 x Ethernet RJ45 10/100
• Supported Resolution - Variable - Up to 4K (8MP)
• Protocols - TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, ONVIF
• Compression - Ultra 265/H.265/H.264
• Input Voltage - 12VDC
• Power Consumption - <5W
• Environmental - IP30 - Install in a Dry Dust Free Environment. Do not expose to moisture
